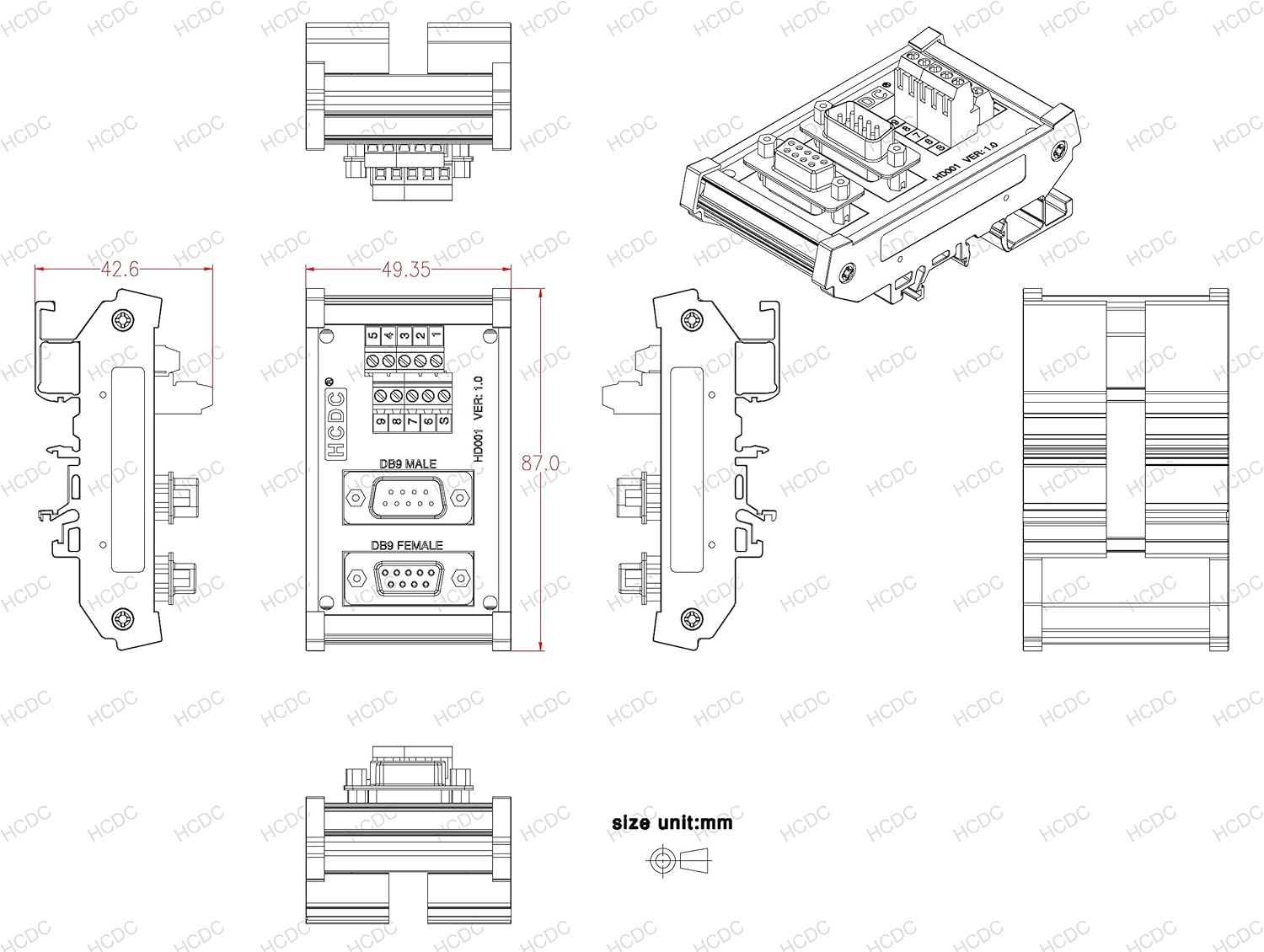

DIN Rail Mount D-SUB Male-Female Interface Module Terminal Block Breakout Board (DB9)
Product details
| Management number | 218152265 | Release Date | 2026/05/03 | List Price | $8.00 | Model Number | 218152265 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C 3, Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2, steel, Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual copper layers.5, Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
- Standard D-SUB Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
- Rated voltage: 60V. Rated current: 1Amp / per pin. Operating Temperature: -20C to 50C
- Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. FR-4 fiber glass PCB, dual copper layers.
- Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
| Gauge | 16.0 |
|---|---|
| Model | HD001T-010T Series |
| Pitch | 3.81 Millimeters |
| Voltage | 60 Volts |
| Brand Name | HCDC |
| Part Number | HD001T-010T Series |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 1 Amps |
| Number Of Poles | 9 |
| Number Of Contacts | 9 |
| Number of Positions | 9 |
| Upper Temperature Rating | 50 Degrees Celsius |
